Chemical Injection SCSSV Steel 304L Control Line Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
|Minimum Order Quantity :||Negotiable||Price :||Negotiable|

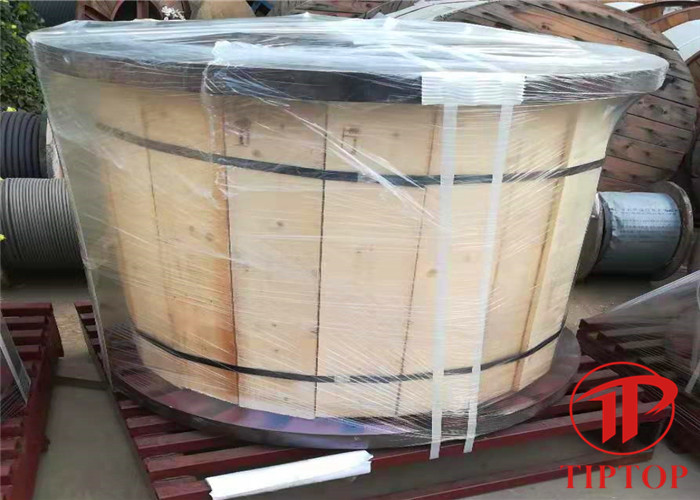

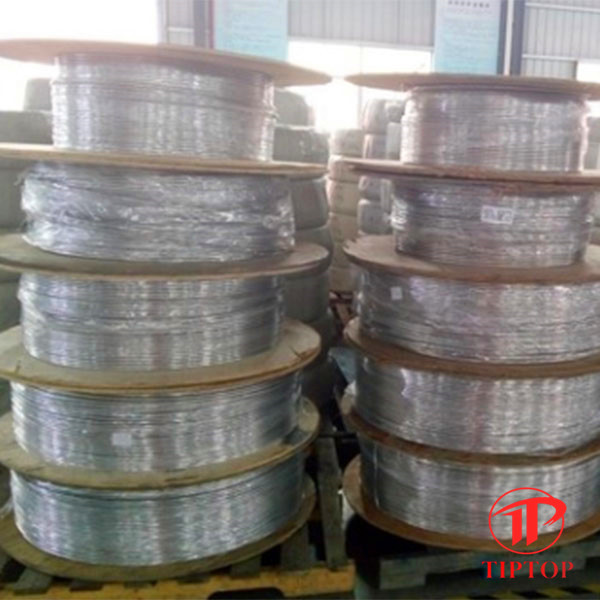

|Packaging Details :||Seaworthy wooden cases or wooden reels||Delivery Time :||10 days|
|Payment Terms :||T/T||Supply Ability :||1000 tons per month|
|Place of Origin:||CHINA||Brand Name:||TIPTOP|
|Certification:||ISO 9001||Model Number:||2205 Duplex|
|Material:||2205 Duplex||Standard:||ASTM A789|
|Length:||Customized||Processing:||Bending, Welding, Cutting|
|Product:||2205 Duplex ASTM A789 SS Hydraulic Control Line Tubing 3/8" OD||Pressure:||80MPa|
3/8" OD Control Line Tubing,
2205 Duplex Control Line Tubing,
ASTM A789 Control Line Tubing
2205 duplex stainless steel is smelted and manufactured in its solid-quenched structure in which the ferrite phase and the austenite phase are half of the stainless steel, referred to as 2205 stainless steel, also called 2205 duplex steel. The actual phase ratio is that ferrite occupies 45-55%, and the corresponding austenite occupies 55-45%. The excellent performance of 2205 duplex stainless steel is guaranteed by an appropriate ratio of two-phase structure.
2205 duplex stainless steel has excellent mechanical properties, corrosion resistance, and good weldability, and has a wide range of uses in the oil and gas industry, marine engineering, chemical industry and other industries. The length of the oil and gas pipelines laid by duplex stainless steel in the oil and natural gas industry has exceeded 850km, and most of them are 2205 duplex stainless steel seamless steel pipelines (some are S31803 duplex stainless steel pipelines and 2507 duplex stainless steel pipelines).
|Seam Welded Tubing (TYPE)||
Min. Burst pressure
Min. Collapse pressure
|Load at Min. 0.2% YS(IBS)||Load at Typical UTS (IBS)|
|3/8" × 0.035"||2205||18,333||12,222||2,991||4,673|
|3/8" × 0.049"||2205||25,667||16,489||4,015||6,273|
|3/8" × 0.065"||2205||34,048||20,930||5,064||7,913|
|3/8" × 0.083"||2205||43,476||25,371||6,091||9,517|
This product is mainly used to inject chemical reagents into oil and gas wells. Connect the 3/8" hydraulic control line to the downhole chemical injection valve, a certain concentration of cleaning chemicals can enter the chemical injection valve from the ground through the hydraulic control line and then be discharged into the underground pipeline, which can effectively remove tubing fouling.
Inspection & Test
1 .100 % PMI , Spectro Chemical Aanlysis Test for Raw Material
2 .100 % Dimension & Visual Examination
3 . Mechanical Properties Test Include Tension Test,Flaring Test ( For Seamless tube / pipe ) / Flange Test ( For Welded Pipe & Tube ) , Hardness Test , Reversed Flattening Test
4 .100 % Hydrostatic Test or 100 % NON - DESTRUCTIVE Test ( ET or UT )
5 . Radiographic Test for Welded Pipe ( shall be accordance with specification , or shall be as agreed upon between the purchaser and vendor )
6 . Straightness Test ( optional )
7 . Roughness Test ( optional )
8 . Intergranular Corrosion Test ( optional )
9 . Impact Test ( optional )
10 . Grain Size Determinations ( optional )
NOTES: ALL THE TESTS AND INSPECTION RESULT NEED TO BE SHOWED IN REPORTS ACCORDING TO STANDARD AND SPECIFICATION.
|S32205||0.03||1||2||0.03||0.02||22.0 - 23.0||4.5 - 6.5||3.0 - 3.5||0.14 - 0.20||/|
Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.
Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.
Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.
