Home ProductsSS Stainless Steel Coiled Tubing2300 Feets 0.02" WT ASTM A789 SS316L Welded Coiled Tubing
2300 Feets 0.02" WT ASTM A789 SS316L Welded Coiled Tubing
2300 Feets 0.02" WT ASTM A789 SS316L Welded Coiled Tubing 2300 Feets 0.02" WT ASTM A789 SS316L Welded Coiled Tubing
Contact Now

2300 Feets 0.02" WT ASTM A789 SS316L Welded Coiled Tubing

Minimum Order Quantity : Negotiable Price : Negotiable
Packaging Details : Seaworthy wooden cases or wooden reels Delivery Time : 10 days
Payment Terms : T/T Supply Ability : 1000 tons per month
Place of Origin: CHINA Brand Name: TIPTOP
Certification: ISO 9001 Model Number: 304,316,625,825,2205,2507

Detail Information
Material: 304, 304L, 316, 316L Standard: ASTM A789
Length: According To The Applications Product: ASTM A789 Welded SS Stainless Steel Coiled Tubing 0.02"~0.083" WT
OD: 1/16"~1" WT: 0.02"~0.083"
High Light:

SS316L Welded Coiled Tubing

,

ASTM A789 Welded Coiled Tubing

,

0.02" WT Welded Coiled Tubing

Product Description

ASTM A789 Welded SS Stainless Steel Coiled Tubing 0.02"~0.083" WT

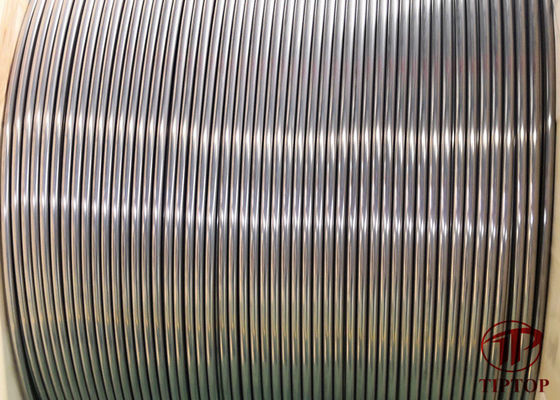

Tiptop is a famous high-quality stainless steel coiled tubing supplier in China. It is available for stainless steel coiled tubes in length up to 2300 feets. SS coiled tubes straighteners make stainless steel coiled tubing installation faster and easier. Depending on the different applications the SS Coiled Tubes are available in different sizes.



Tiptop has a wide grade of Stainless Steel Coil Tube such as 304 Stainless Steel Coil Tube, 304L Stainless Steel Coil Tube, 316 Stainless Steel Coil Tube and 316L Stainless steel Coil Tube.



Stainless Steel Coil Tube Specification



Outside Diameter 1/16” to 3/4"
Thickness 0. 010" to 0.083”
Grades TP - 304, 304L, 316, 316L
Seamless Coil Tubing Specifications ASTM A213 (average wall) and ASTM A269
Welded Coil Tubing Specifications ASTM A249 and ASTM A269



(WELDED 304/L OR 316/L)



Outside Diameter (OD) Wall Thickness
1/8” – 3/4” 0.5mm – 4mm



Stainless Steel Coil Tube Tolerance

Stainless Steel Coil Tube Specifications – Restricted Tolerance Controls

OD Tolerance: +0.005/-0 in.

Hardness: Maximum 80 HRB (Rockwell)

Wall Thickness: ±10%

Chemistry: Min. 2.5% Molybdenum



The below table shows the chemical composition of the used for Stainless Steel Coil Tubes:



UNS C Mn P S Si Cr Ni Mo Ti Nb N
S30400 0.08 2 0.045 0.03 1 18.0-20.0 8.0-11.0
S30403 0.035 2 0.045 0.03 1 18.0-20.0 8.0-13.0
S3160 0.08 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0
S31603 0.035 2 0.045 0.03 1 16.0-18.0 11.0-14.0 2.0-3.0



Stainless Steel Coil Tube Mechanical Properties



Material Heat Treatment Min. Temperature (℃)

Min. Tensile Strength

(Mpa)

Min. Yield Strength

(Mpa)

Min. Elongation

(%)
TP304 1040 515 205 35
TP304L 1040 485 170 35
TP316 1040 515 205 35
TP316L 1040 485 170 35


Application

Industrial use: heat exchanger, boiler, petroleum, chemical, fertilizer, chemical fiber, pharmaceutical, nuclear power.



2300 Feets 0.02" WT ASTM A789 SS316L Welded Coiled Tubing 0



FAQ

Q1: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.

Q2: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-45 days if the goods are not in stock, it is according to quantity.


Q3. Can you provide customize service?
A: Yes.Pipes can be customized as per the customers' request.

Q4. How to ensure the quality?
A:Mill Test Certificate is supplied with shipment.
If needed, a Third Party Inspection is acceptable.

Tag:

316L Coiled Tubing Pipe

Duplex 2507 Coiled Line Pipe

316L Hydraulic Control Line
