ASTM 3/8" OD Austenitic SS316L Welded Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
| Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
|---|---|---|---|
| Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
| Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
| Place of Origin: | China | Brand Name: | Tiptop |
|---|---|---|---|
| Certification: | ISO 9001 | Model Number: | 1/2 |
|
Detail Information |
|||
| Material: | Duplex 2507 | OD: | 1/2" |
|---|---|---|---|
| Wall Thickness: | 0.065" | Technique: | Cold Drawn |
| Standard: | ASTM A789 | Processing Type: | Seamless & Welded |
| High Light: | 1/2 Duplex 2507 Coiled Line Pipe,Duplex 2507 Coiled Line Pipe,ASTM A789 Duplex 2507 control line |
||
Product Description

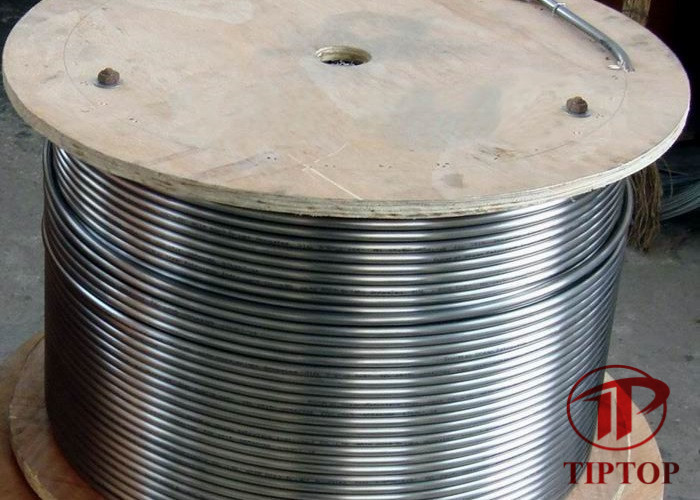

1 / 2 * 0.065 Duplex 2507 Stainless Steel Coiled Control Line Tubing ASTM A789
Tiptop offers a variety of duplex stainless steel, super duplex stainless steel welded and seamless tubing, depending upon the properties the tubing is required to exhibit. Other alloys and sizes are also available upon request. Duplex stainless steels (named for their austenite and ferrite compositions), has greater yield strength than austenitic stainless steel.
Seamless control lines are used in SCSSV, Chemical Injection, and Advanced Well Completions. Seamless tubes provide another tubing solution for our customer's complex well designs. The most common uses for Seamless line tend to be shorter length applications whereby no orbital welds are required.
Welded Control Lines are the preferred construction for lines being used in downhole oil and gas applications. Our welded control lines are used in SCSSV, Chemical Injection, Advanced Well Completions, and Gauge Applications.
Standard: ASTM-A 789 Standard specification for seamless and welded ferretic/austenitic stainless steel tubing for general service. This specification covers various grades of duplex stainless steels.
Chemical Composition
| Grade | C | Mn | P | S | Si | Ni | Cr | Mo | N | Cu |
| S31803 (2205) | 0.030 | 2.000 | 0.030 | 0.020 | 1.000 | 4.5-6.5 | 21.0-23.0 | 2.5-3.5 | 0.08-0.20 | … |
| S322505 (2205) | 0.030 | 2.000 | 0.030 | 0.020 | 1.000 | 4.5-6.5 | 22.0-23.0 | 3.0-3.5 | 0.14-0.20 | … |
| S32750 (2507) | 0.030 | 1.200 | 0.035 | 0.020 | 0.800 | 6.0-8.0 | 24.0-26.0 | 3.0-5.0 | 0.24-0.32 | 0.500 |
Duplex 2205 Stainless Steel Coiled Control Line Tubing Features
Close dimensional tolerances
Enhanced mechanical properties
Superior surface finish
High cleanness of inside surface
Controlled ovality, eccentricity
Delivery condition
Cold worked
Bright annealed
Annealed and polished
Size Chart:
| OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
| 1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
| 3/16" | 0.02,0.028,0.035,0.049 | ||||
| 1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
| 5/16" | |||||
| 3/8" | |||||
| 1/2" | |||||
| * OD: Up to 1 inch | |||||
Application
Control line
Chemical injection line
Electrical line
Multi-line flat pack
Hydraulic line
Tubing encapsulated conductor
Intelligent well completions
Capillary tubing
