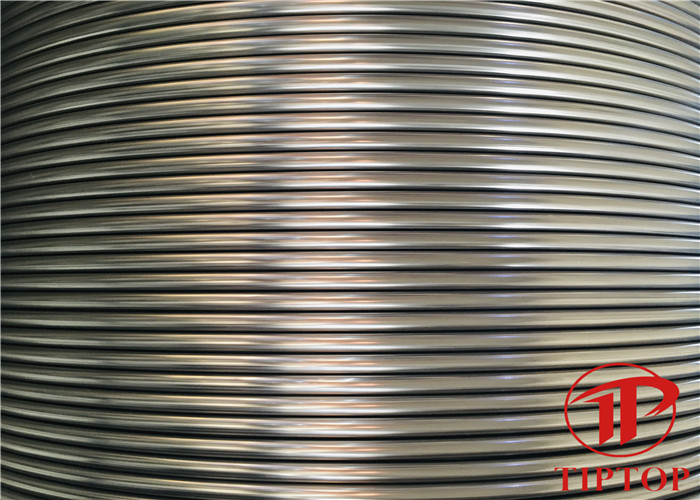

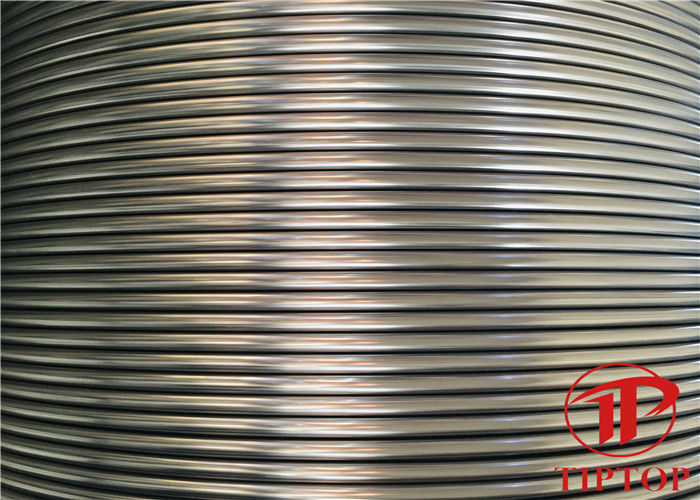

ASTM 3/8" OD Austenitic SS316L Welded Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 2205 |
Detail Information |
|||
Material: | 2205 | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM A789 | Processing Type: | Seamless |
OD: | 1 / 4 | Thickness: | 0.02,0.028,0.035,0.049,0.065.0.083 |
High Light: | Tiptop ASTM A789 control line,0.065" 1/4" Duplex 2205 line Tubing,0.065" ASTM A789 control line |
Product Description
2205 duplex stainless steel is a kind of stainless steel in which the proportion of ferrite phase and austenite phase in solid quenching is half and half, which is short for 2205 stainless steel. The actual phase ratio is ferritic 45~55% and austenite 55~45% accordingly. Excellent performance of 2205 duplex stainless steel depends on the appropriate proportion of the two-phase structure to ensure. 2205 duplex stainless steel tubes have excellent mechanical properties and corrosion resistance, as well as good weldability, and are widely used in the petroleum and natural gas industry, Marine engineering, chemical industry and other industries.
Duplex SS 2205 Corrosion-resistant coiled tubing is one of our most competitive products, we have rich processing and supply experience. Our products are standardized and international, complying to ASTM A789 and all relevant industry standards, and have been exported to overseas markets in large quantities for many years.
Our products have complete specifications and can meet all working conditions. Our outer diameter range of 2205 tube is from 1/8” to 1/2”. All dimensions and corresponding parameters are listed in the table below, we can also customize it according to customers' special requirements.
OD |
Wall |
Materials |
Standard |
Working Pressure |
Length |
1/8" |
0.02,0.028,0.035 |
Austenitic steel 304L (UNS S30403) |
ASTM-A 269 |
60-120 Mpa |
Customized |
3/16" |
0.02,0.028,0.035,0.049 |
||||
1/4" |
0.02,0.028,0.035,0.049,0.065.0.083 |
||||
5/16" |
|||||
3/8" |
|||||
1/2" |
|||||
* OD: Up to 1 inch |
We have a mature quality control system to ensure a 100% qualified delivery rate:
Chemical composition analysis
Tensile testing
Hardness
Flattening
Flaring
Hydrostatic testing
Eddy current testing
