ASTM 3/8" OD Austenitic SS316L Welded Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 3/16 |
Detail Information |
|||
Material: | Incoloy 825 | OD: | 3/16" |
---|---|---|---|
Wall Thickness: | 0.028" | Technique: | Cold Drawn |
Standard: | ASTM B704 | Processing Type: | Seamless & Welded |
High Light: | SSSV Oilfield Coil Tubing,SSSV SS Coiled Tubing,ASTM B704 SSSV Control Line |
Product Description

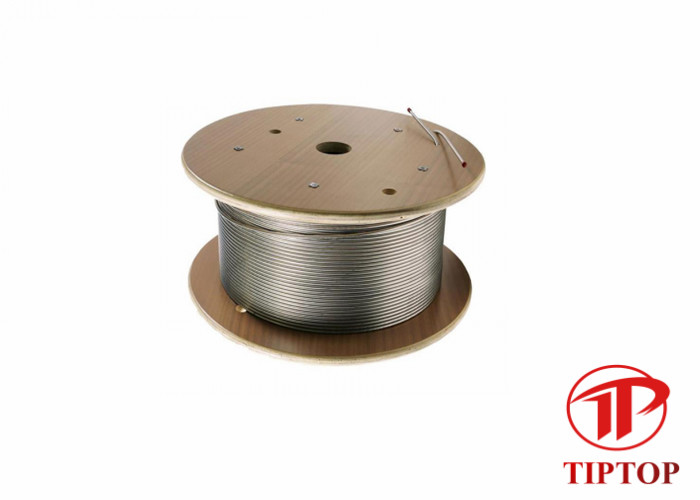

3 / 16 * 0.028 Stainless Steel Coiled Control Line Tube Incoloy 825 for SSSV
TIiptop manufactures precision control line tubing for hydraulic and chemical injection of onshore and subsea oil and gas wells. The control line tubing is manufactured in a number of different product forms including seam welded and redrawn, seam welded and floating plug redrawn and seamless depending on the customer’s specification and application.
The nickel content in Alloy 825 provides resistance to chloride-ion stress corrosion cracking. The nickel, in conjunction with the molybdenum and copper, also gives Alloy 825 tubing great resistance to reducing environments, like those containing sulfuric and phosphoric acids. Aiding resistance to pitting and crevice corrosion is one of the chief benefits of the molybdenum. Resistance to a variety of oxidizing substances such as nitric acid, nitrates, and oxidizing salts comes from the chromium content. Titanium, often with heat treatment, serves to stabilize the alloy against sensitization to inter granular corrosion.
Tiptop is specialized in providing alloy steel coiled tube, alloy steel control line, alloy steel continuous tube.
Our raw materials are all from the best manufacturers in China. Using high quality raw materials and advanced laser welding technology, our products have the characteristics of high strength, high plasticity, low cycle fatigue performance, high efficiency, low cost, ety and environmental protection.
Product name | Coiled Control line Tubing |
Material | stainless steel&alloy steel |
Steel grade | SS304(S30400), SS304L(S30403), SS316(S31600), SS316L(S31603), duplex SS2205(S32205), super duplex SS2507(S32750), alloy steel 625(N06625), alloy steel 825(N08825), |
Man Technique | Laser welding, cold drawing |
OD | 3mm (0.118”) to 25.4mm (1.00” |
Wall thickness | 0.5mm (0.020”) to 3mm (0.118”) |
Standard | ASTM-A269 / ASTM-A632 / ASTM-A789 |
Surface | Bright Annealed ,Polish |
Test | Hardness Test,Hydrostatic Test,Ultrasonic Test,Eddy Current Test, Dimensional Checking,Chemical Analysis etc. |
Our main production process is generally as follows: Chemical composition analysis → Tensile testing → Hardness → Flattening → Flaring → Hydrostatic testing → Eddy current testing. Based on guaranteed quality, we can provide timely delivery and best service.
Our sizes & specifications are in full compliance with production standards and can also be customized according to customers' special requirements.
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
