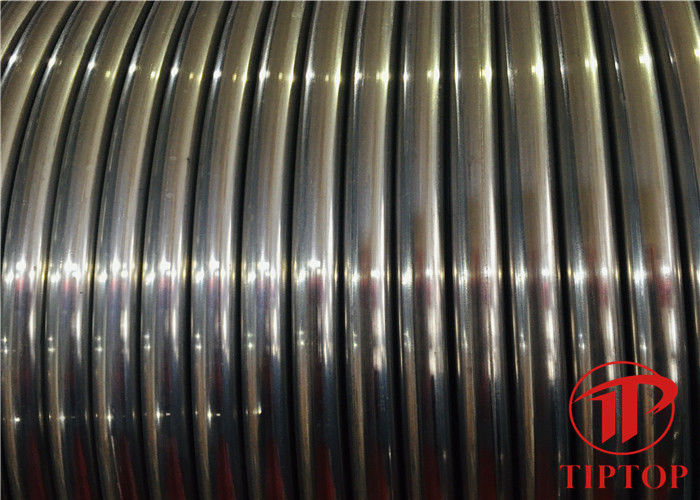

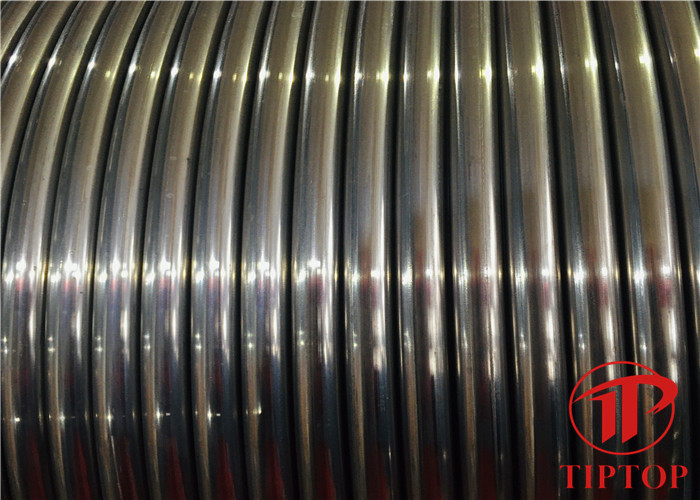

ASTM A269 Welded Downhole 304L Capillary Coiled Tubing

Product Description

ASTM A269 Welded Capillary Stainless Steel Coiled Tubing Downhole Tube 304L


TIPTOP manufactures precision control line tubing for hydraulic and chemical injection of onshore and subsea oil and gas wells. The control line tubing is manufactured in a number of different product forms including seam welded and redrawn, seam welded and floating plug redrawn and seamless depending on the customer’s specification and application.

Coiled seam welded pressure tubing in the heat treated condition is typically used in oil and natural gas wells for applications including hydraulically actuated surface-controlled subsurface ety valves, chemical injection, and instrumentation. In such applications, it is commonly referred to as control line tubing.

The tubing is generally deployed by strapping it to the outside of the production casing. It may be encapsulated and can be included along with other pressure tubing or TEC and mechanical components, such as bumpers, within a flatpack. The tubing is frequently supplied as 5000 ft to 35000 ft. coils on a wooden or steel reel, depending on size.



Size Chart:



Manufacturing Range
• Standard:
ASTM-A 269
ASTM-A 632
ASTM-A 789
ASTM-B 704.
• Diameter from 1/8” to 1/2”.
• Wall thickness: 0.02,0.028,0.035,0.049,0.065.0.083.
• OD tolerance: Follow customer request
• Length: According To Customers' Requests.
• Packing: Wrapped on wooden reel, and surface protected by plastic bags,finally packed into wooden case or iron case.
• Grade: TP304, TP304L, TP316 / 316L
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
• Process Method: Cold Drawn / Cold Rolled.
