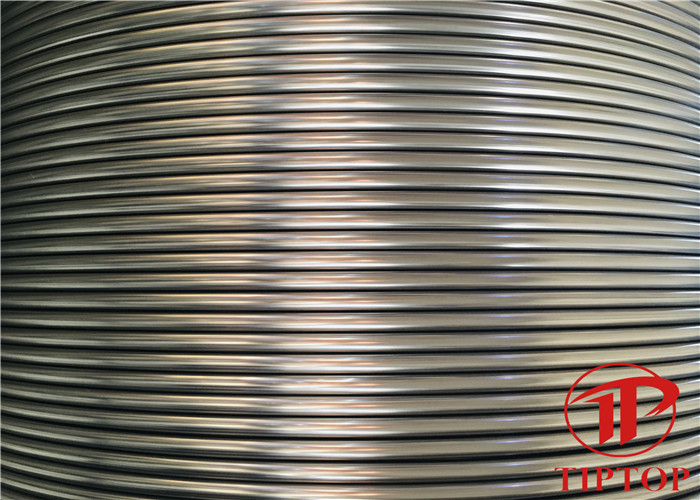

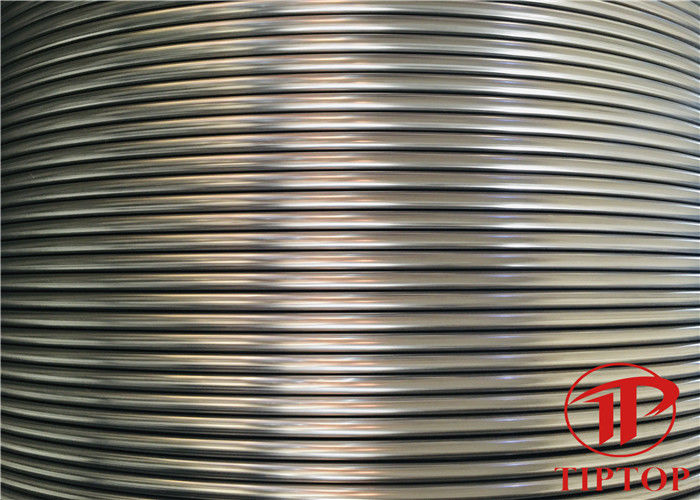

ASTM 3/8" OD Austenitic SS316L Welded Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | 1000 TONS PER MONTH |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | 2507 |
Detail Information |
|||
Material: | Duplex 2507 | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM A789 | Processing Type: | Seamless |
OD: | 1/4 | Thickness: | 0.02,0.028,0.035,0.049,0.065.0.083 |
High Light: | 1/4" Duplex 2507 Coiled Steel Tubing,0.083" Duplex 2507 Control Line,Seamless ASTM A789 Control Line |
Product Description
Our company is specialized in the production of Coiled Control Line Tubing of various materials and specifications, products in line with the industry's highest standards. Equipped with rich industry experience and mature production lines, our products are exquisite in workmanship and advanced in technology. Complete in size and specification, our tube can meet various operating conditions.
Tiptop offers a variety of duplex stainless steel, super duplex stainless steel welded and seamless tubing, depending upon the properties the tubing is required to exhibit. Other alloys and sizes are also available upon request. Duplex stainless steels (named for their austenite and ferrite compositions), has greater yield strength than austenitic stainless steel.
Corrosion resistant alloy steel coiled control line tubing, as the most important products of our company, has complete specifications and excellent quality, fully conforms to ASTM A269 / ASTM A789 / ASTM B704 standard.
The detailed dimensions and specifications are shown in the table below. We can also customize it according to customers' special requirements.
OD | Wall (inch) |
Materials | Standard | Working Pressure (MPa) |
Length |
1/8" | 0.02,0.028,0.035 | Austenitic steel 304L (UNS S30403) Austenitic steel 316L (UNS S31603) Duplex 2205 (UNS S32205 & S31803) Super Duplex 2507 (UNS S32750) Incoloy 825 (UNS N08825) Inconel 625 (UNS N06625) |
ASTM-A 269 ASTM-A 632 ASTM-A 789 ASTM-B 704 |
60-120 Mpa | Customized |
3/16" | 0.02,0.028,0.035,0.049 | ||||
1/4" | 0.02,0.028,0.035,0.049,0.065.0.083 | ||||
5/16" | |||||
3/8" | |||||
1/2" | |||||
* OD: Up to 1 inch |
Chemical Composition,% | ||||||||
Standard | ASTM A269 | ASTM A789 | ASTM B704 | |||||
Material | SS 304 | SS 304L | SS 316 | SS 316L | Duplex 2205 | Super Duplex 2507 | Incoloy 625 | Incoloy 825 |
UNS | S30400 | S30403 | S31600 | S31603 | S32205 | S32750 | N06625 | N08825 |
C | 0.08 | 0.035 | 0.08 | 0.035 | 0.03 | 0.03 | 0.1 | 0.05 |
Mn | 2 | 2 | 2 | 2 | 2 | 1.2 | 0.5 | 1 |
P | 0.045 | 0.045 | 0.045 | 0.045 | 0.03 | 0.035 | 0.015 | ... |
S | 0.03 | 0.03 | 0.03 | 0.03 | 0.02 | 0.02 | 0.015 | 0.03 |
Si | 1 | 1 | 1 | 1 | 1 | 0.8 | 0.5 | 0.5 |
Ni | 8.0-11.0 | 8.0-12.0 | 10.0-14.0 | 10.0-15.0 | 4.5-6.5 | 6.0-8.0 | min 58.0 | 38.0-46.0 |
Cr | 18.0-20.0 | 18.0-20.0 | 16.0-18.0 | 16.0-18.0 | 22.0-23.0 | 24.0-26.0 | 20.0-23.0 | 19.5-23.5 |
Mo | ... | ... | 2.00-3.00 | 2.00-3.00 | 3.0-3.5 | 3.0-3.5 | 8.0-10.0 | 2.5-3.5 |
N | ... | ... | ... | ... | 0.14-0.20 | 0.24-0.32 | ... | ... |
Cu | ... | ... | ... | ... | ... | 0.5 | ... | 1.5-3.0 |
Fe | 5 | min 22.0 | ||||||
Al | 0.4 | 0.2 | ||||||
Ti | 0.4 | 0.6-1.2 | ||||||
Cb+Ta | 3.15-4.15 | ... |
