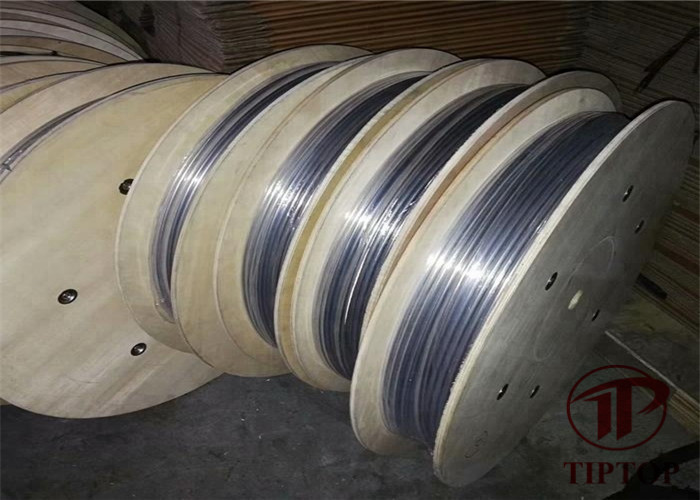

ASTM 3/8" OD Austenitic SS316L Welded Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
Minimum Order Quantity : | 1 reel | Price : | USD/EURO/RMB |
---|---|---|---|
Packaging Details : | WOODEN REEL +WOODEN CASE | Delivery Time : | ONE WEEL |
Payment Terms : | L/C, T/T, | Supply Ability : | Depends on customer request |
Place of Origin: | China | Brand Name: | Tiptop |
---|---|---|---|
Certification: | ISO 9001 | Model Number: | ASTM |
Detail Information |
|||
Material: | 304,315,625,825,2205,2507 | Technique: | Cold Drawn |
---|---|---|---|
Standard: | ASTM A269,B704,A789 | Processing Type: | Seamless & Welded |
OD: | 1/8"~1/2" | Thickness: | 0.02"~0.083" |
High Light: | 0.02" SS304L Coiled Tubings,0.02" ASTM A269 Coiled Tubing,alloy 825 0.02" Coiled Tubing |
Product Description
304/304L is widely used grades in stainless steel group due to its excellent corrosion resistance and properties, these stainless steels have ability to resist hight temperature, low temperature as well as high pressure, and it's cost effective material relatively.
We have many years of experiences to offer stainless steel tubing coil, fabricating and bending stainless steel tubing by bending equipment and tool, ASTM A213 / A269 for seamless stainless steel tubing, ASTM A249 / A269 for welded tube, generally in bright annealing finish, annealing pickling finish can be provided for option.
This austenitic stainless steel 304 / 304L coiled tubing are manufactured by making use of quality assured steel & leading techniques in accordance with the norms of industry. Besides, this range is admired in the market for its high performance, excellent corrosion resistance and superior toughness. Our range of austenitic stainless steel coiled tubes are known for its highly excellent performance and provides optimum results.
Our Coiled Stainless Steel Tubes is far and wide used in the natural gas, petrochemical, oil and gas, and geothermal applications.
We specialize in manufacturing of both stainless steel seamless coiled tubes and stainless steel welded coiled tubes in an extensive collection of stainless steel, titanium, nickel, and other special alloys. Most of the standard sizes of this Coiled Stainless Steel Tubing are available ex-stock for instantaneous deliveries to our patrons. We offer good quality SS seamless coiled tubes at industry leading prices. We manufacture these SS welded coiled tubes by fine quality raw materials and sophisticated machinery. Meanwhile, stainless steel coiled tubes are available in lengths of different meters or customized lengths according to clientele requirements.
Size Chart:
OD |
Wall |
Materials |
Standard |
Working Pressure |
Length |
1/8" |
0.02,0.028,0.035 |
Austenitic steel 304L (UNS S30403) |
ASTM-A 269 |
60-120 Mpa |
Customized |
3/16" |
0.02,0.028,0.035,0.049 |
||||
1/4" |
0.02,0.028,0.035,0.049,0.065.0.083 |
||||
5/16" |
|||||
3/8" |
|||||
1/2" |
|||||
* OD: Up to 1 inch |
Chemical Composition,% |
||||||||
Standard |
ASTM A269 |
ASTM A789 |
ASTM B704 |
|||||
Material |
SS 304 |
SS 304L |
SS 316 |
SS 316L |
Duplex 2205 |
Super Duplex 2507 |
Incoloy 625 |
Incoloy 825 |
UNS |
S30400 |
S30403 |
S31600 |
S31603 |
S32205 |
S32750 |
N06625 |
N08825 |
C |
0.08 |
0.035 |
0.08 |
0.035 |
0.03 |
0.03 |
0.1 |
0.05 |
Mn |
2 |
2 |
2 |
2 |
2 |
1.2 |
0.5 |
1 |
P |
0.045 |
0.045 |
0.045 |
0.045 |
0.03 |
0.035 |
0.015 |
... |
S |
0.03 |
0.03 |
0.03 |
0.03 |
0.02 |
0.02 |
0.015 |
0.03 |
Si |
1 |
1 |
1 |
1 |
1 |
0.8 |
0.5 |
0.5 |
Ni |
8.0-11.0 |
8.0-12.0 |
10.0-14.0 |
10.0-15.0 |
4.5-6.5 |
6.0-8.0 |
min 58.0 |
38.0-46.0 |
Cr |
18.0-20.0 |
18.0-20.0 |
16.0-18.0 |
16.0-18.0 |
22.0-23.0 |
24.0-26.0 |
20.0-23.0 |
19.5-23.5 |
Mo |
... |
... |
2.00-3.00 |
2.00-3.00 |
3.0-3.5 |
3.0-3.5 |
8.0-10.0 |
2.5-3.5 |
N |
... |
... |
... |
... |
0.14-0.20 |
0.24-0.32 |
... |
... |
Cu |
... |
... |
... |
... |
... |
0.5 |
... |
1.5-3.0 |
Fe |
|
|
|
|
|
|
5 |
min 22.0 |
Al |
|
|
|
|
|
|
0.4 |
0.2 |
Ti |
|
|
|
|
|
|
0.4 |
0.6-1.2 |
Cb+Ta |
|
|
|
|
|
|
3.15-4.15 |
... |
