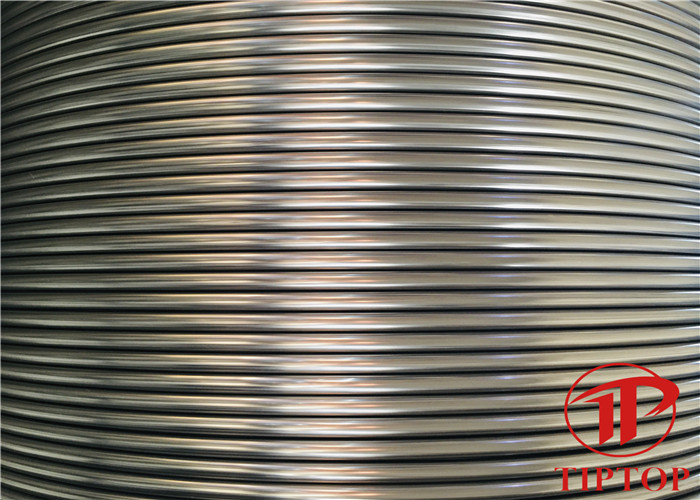

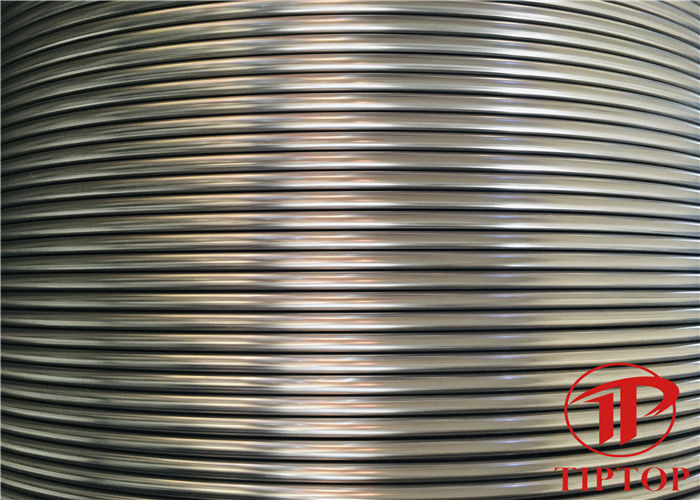

ASTM 3/8" OD Austenitic SS316L Welded Coiled Tubing
Contact Person : Dan Zhang
Phone Number : 86-13679121121
WhatsApp : +8613679121121
|Minimum Order Quantity :||1 reel||Price :||USD/EURO/RMB|
|Packaging Details :||WOODEN REEL +WOODEN CASE||Delivery Time :||ONE WEEL|
|Payment Terms :||L/C, T/T,||Supply Ability :||1000 TONS PER MONTH|
|Place of Origin:||China||Brand Name:||Tiptop|
|Certification:||ISO 9001||Model Number:||304L|
|Standard:||ASTM A269||Processing Type:||Welded & Seamless|
|OD:||1/4"||Length:||According To The Sizes|
SSSV Steel Control Line Tubing,
SSSV 304L Oil Gas Control Line,
SSSV 304L SS Coiled Tubing
1/4" stainless steel control line tube is mainly used for controling the downhole safety valve and bleed valve of packer ,connecting 1/4 "hydraulic control line to downhole safety valve & bleed valve, through the ground pressuring given to control the switch of subsurface safety valve and bleed valve, after processing to the set pressure, subsurface safety valve and bleed valve will be opened at the same time, oil and gas Wells will be in proper production, at the same time, the gas separated by electric submersible pump can also be discharged by bleed valve, if encounter with blowout or normal well shut-in, then release the pressure of control line, so as to close the subsurface safety valve and bleed valve, Plugging the oil and gas well tubing and annulus flow channel to ensures the safety of oil Well, of course, the 1/4 "hydraulic control line can also be used separately for controlling subsurface safety valve, it also can be used for the control of the ground safety valve and other ground pressure control valve, as well as large equipment instrument control systems.
Tiptop control line tubing products have been successfully used in some of the most aggressive subsea and downhole conditions and we have a long proven track record of supplying products that meet the strict quality requirements of the Oil & Gas sectors.
Coiled tubing is available in a range of different product forms depending on the customer requirements. We manufacture seam welded and redrawn, seam welded and floating plug redrawn and seamless tube products. Tubing can be supplied in the annealed or cold worked condition.
|1/8"||0.02,0.028,0.035||Austenitic steel 304L (UNS S30403)
Austenitic steel 316L (UNS S31603)
Duplex 2205 (UNS S32205 & S31803)
Super Duplex 2507 (UNS S32750)
Incoloy 825 (UNS N08825)
Inconel 625 (UNS N06625)
|* OD: Up to 1 inch|
Hydrostatic test for each coil and conform to ASTM standards and requested specifications.
The specification and length per coil can be customized according to customer’s requirements.
